RailTight End Brackets
Post and Rail Fencing. Without the Welding.
Build professional-quality steel post and rail fencing with nothing but a drill. No welder, no grinder, and a finish that looks like it was done by a pro. The RailTight End Bracket’s patent-pending design even handles slopes up to 40°.
Post And Rail Fencing Without The Welding
RailTight End Brackets make post and rail installs fast on steel or timber posts. Available for flat or round posts and sold as a pair.
*Retail pricing shown is a guide only. Prices will vary depending on store location and quantities. Freight costs are not included in this price guide. All pricing includes 10% GST.
DRILL AND SCREW. THAT’S IT.
No Welder. No Grinder. No Generator.
Installing RailTight End Brackets takes a drill, the included screws, and nothing else. Mark your position, drill your pilot holes, screw the brackets on, slide the rail on. That’s the entire process, and it takes a fraction of the time welding does.
Where a welded rail joint requires a welder, generator, grinder, safety gear, and a skilled operator, the RailTight bracket needs one person and a drill. That means less time, less cost and less equipment on site.
NO EXPERIENCE NECESSARY
Professional Results.
Without the Professional Price Tag.
You don’t need to be a fencer or a welder to build a great-looking post and rail fence. The RailTight system is designed so that anyone with a drill can achieve a finish that looks like it was done by a professional because the bracket does the work for you.
Every joint is consistent, every angle is clean, and every rail sits flush. No grinding marks, no weld splatter, no uneven joins. Just neat, fully enclosed brackets that give a high-quality finish every time.
PATENT-PENDING DESIGN
Follow Any Slope. No Calculating. No Welding.
Most post and rail fencing on slopes requires every joint to be individually measured, angle-cut, and welded — a slow, skilled job that drives up cost and install time. The RailTight End Bracket’s patent-pending design eliminates all of that.
The bracket allows up to 40 degrees of angle adjustment, so you can follow the natural slope of the ground without a single calculation. Just position the bracket, drill, screw, and slide the rail in. The bracket does the angle work for you.
Four Reasons Why
Better Than Welded.

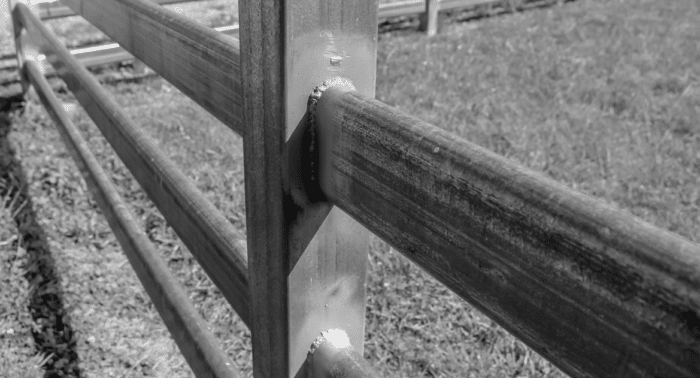

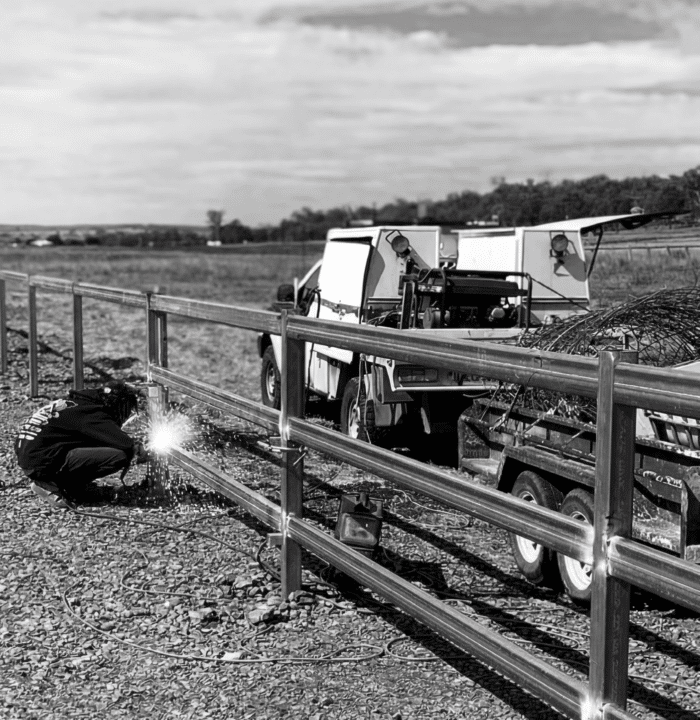

Welding steel post and rail is slow, skilled work. Every weld burns off the galvanising and then has to be painted and ground back by hand. RailTight does it without the welder. The bracket screws straight onto the galvanised steel post and the rail slides in. You get a cleaner finish and an easier repair down the track, without a welder running in the paddock.
1.
The Gal Stays Intact
Every weld burns off the galvanising, and the touch-up paint never matches the gal. It rusts first and shows every time. RailTight bolts onto fully galvanised steel, so there’s no bare metal to paint over and nothing that’ll rust back on you.
2.
Fix A Rail In Minutes
Back a ute into a welded rail and you’re grinding it off and welding a new one in. Do the same to a RailTight rail and you just take the screws out and slide a new length in. It’s a ten-minute job.
3.
NO WELDER. NO FIRE RISK.
There’s no generator or fire unit together to the site, and no waiting on the right conditions. RailTight goes in with an impact driver. No other tools needed.
4.
EVERY JOINT THE SAME
Every weld is different. With RailTight End Brackets, every join on the post and rail fence is the same professional, rust resistant finish.
Cost Comparison
Welded Vs RailTight
Welding steel post and rail means paying a skilled welder’s rate, plus all the gas, rods, grinding discs and paint that get used up along the way. RailTight has none of that. You buy the rail and the bracket pair, then put it up with standard tools and standard labour.
| Welded Post & Rail Cut, weld, grind, paint | RailTight Screw-on. Drill and go. | |
| Time | 17–20 mins per rail | 10 mins per rail |
| Equipment & Specialised Skills | Welder & generator, grinder, paint, clamps, helmet & gloves, fire unit/extinguisher. Skilled welder required. | Impact driver, level, tape measure & marker. Grinder for angles only. No welding experience needed. |
| Site Access | Best suited to accessible sites with machinery access. | Suitable for remote, steep or hard-to-access areas. |
| Cost | Rail only: lower cost. Welder labour: higher cost. Consumables (wire/rods, gas, paint): higher cost. | Rail & bracket pair: higher cost. Standard (non-welder) labour: lower cost. No consumables: no cost. |
BUILT TO LAST
Galvanised. Patent-Pending. Australian Designed.
The RailTight End Bracket isn’t just convenient: it’s engineered for the long term. Every bracket is fully galvanised for rust resistance in all Australian conditions, from coastal salt air to inland dust and heat.
Rust-resistant and designed for all Australian conditions, from coast to country.
The only bracket on the market that allows up to 40° of angle adjustment for slopes without any modifications.
No exposed edges, no sharp points, no weld spatter. Clean and safe for stock.
Two models to cover 75mm+ square posts and 80NB+ round posts.
Designed and developed by Rotech Rural in Armidale, NSW. Tested in real Australian conditions by Australian farmers and contractors.
Each bracket pair includes all the screws you need to install.
WHAT FARMERS & CONTRACTORS ARE SAYING
Trusted Across Australia
THE FULL DETAILS
About the RailTight End Brackets
What Are RailTight End Brackets?
RailTight End Brackets make installing post and rail fencing fast, easy, and professional without welding. Each pair of galvanised brackets fits onto a steel or timber post, creating a clean, fully enclosed joint for 115x42mm rails. Just drill, screw on the brackets, and slide the rail in. The result is a neat, consistent finish that looks like it was done by a professional.
No Welding Required
Traditional steel post and rail fencing requires every joint to be welded which means a welder, generator, grinder, safety equipment, and a skilled operator on site. RailTight eliminates all of that. A drill and the included screws are the only tools you need. That makes it accessible to anyone, not just professional fencing contractors.
It also makes RailTight completely safe to install during total fire ban periods. No sparks, no grinding, no risk. For contractors, this means no more walking away from summer jobs.
Patent-Pending Angled Rail Design
The RailTight End Bracket features a patent-pending design that allows up to 40 degrees of angle adjustment. This means you can follow the natural slope of the ground without measuring angles or welding at awkward positions. Just position the bracket and it accommodates the slope. This is a feature no other bracket on the market offers. Proudly Australian designed by Rotech Rural.
Horse Safe and Anti-Bruise
The fully enclosed design means no sharp edges, no exposed weld spatter, and no grinding marks. Every joint is smooth and clean making RailTight safe for horses and other livestock. The sleek profile reduces the risk of bruising, catching, or injury at every rail joint.
Works With Square and Round Posts
RailTight End Brackets come in two configurations: one for square posts (75mm or larger) and one for round steel posts (80NB or larger). Both use 115x42mm rails and come with all screws included.
Built to Last
Every bracket is fully galvanised for long-term rust resistance in all conditions. Combined with the mechanical strength of a multi-point screw connection (versus a single weld bead), RailTight brackets are built to last as long as the posts and rails themselves.
Frequently Asked Questions
Common Questions About RailTight End Brackets
The real saving is in labour costs. You eliminate the need for a welder, generator, grinder, and a skilled operator. Even for contractors, the time saved per joint adds up significantly across a full fence run.
Yes, and more consistent. A welded rail joint is only as strong as the weld itself, and welds can crack under repeated impact. RailTight distributes force across the full bracket surface and through multiple screw points, creating a connection that doesn’t suffer from weld fatigue.
Each pack includes a pair of RailTight End Brackets and all the screws needed for installation.
Yes. No welding or grinding is involved, so it’s completely safe during total fire bans. A drill is the only power tool required.
Yes. The fully enclosed design means no sharp edges, no weld spatter, and no grinding marks. The smooth profile is specifically designed to be horse-safe and anti-bruise.
Yes. The patent-pending design allows up to 40 degrees of angle adjustment, so you can follow the natural slope of the ground.
One pair (2 brackets) per rail-to-post joint. For example, a 3-rail fence with 10 posts would need 30 pairs.
RailTight End Brackets are designed for steel posts, 75mm or larger square posts, or 80NB or larger round steel posts. They are not designed for timber posts.
RailTight End Brackets are designed for 115x42mm steel rails, the most common cattle rail size in Australian rural fencing.
Yes. RailTight End Brackets are used in cattle yards, holding paddocks, laneways, and loading ramps across Australia. The fully enclosed design is safe for livestock and the brackets handle the repeated pressure of yarding without cracking or loosening.
Yes. The multi-point screw connection distributes force across the full bracket surface rather than concentrating it in a single weld line. This makes RailTight more resistant to repeated impact from cattle pushing against rails than a welded joint.
Yes. RailTight is designed so anyone with a drill can achieve a professional finish. Mark your position, drill pilot holes, screw the brackets on, slide the rail in. No welding experience, no special tools required.
